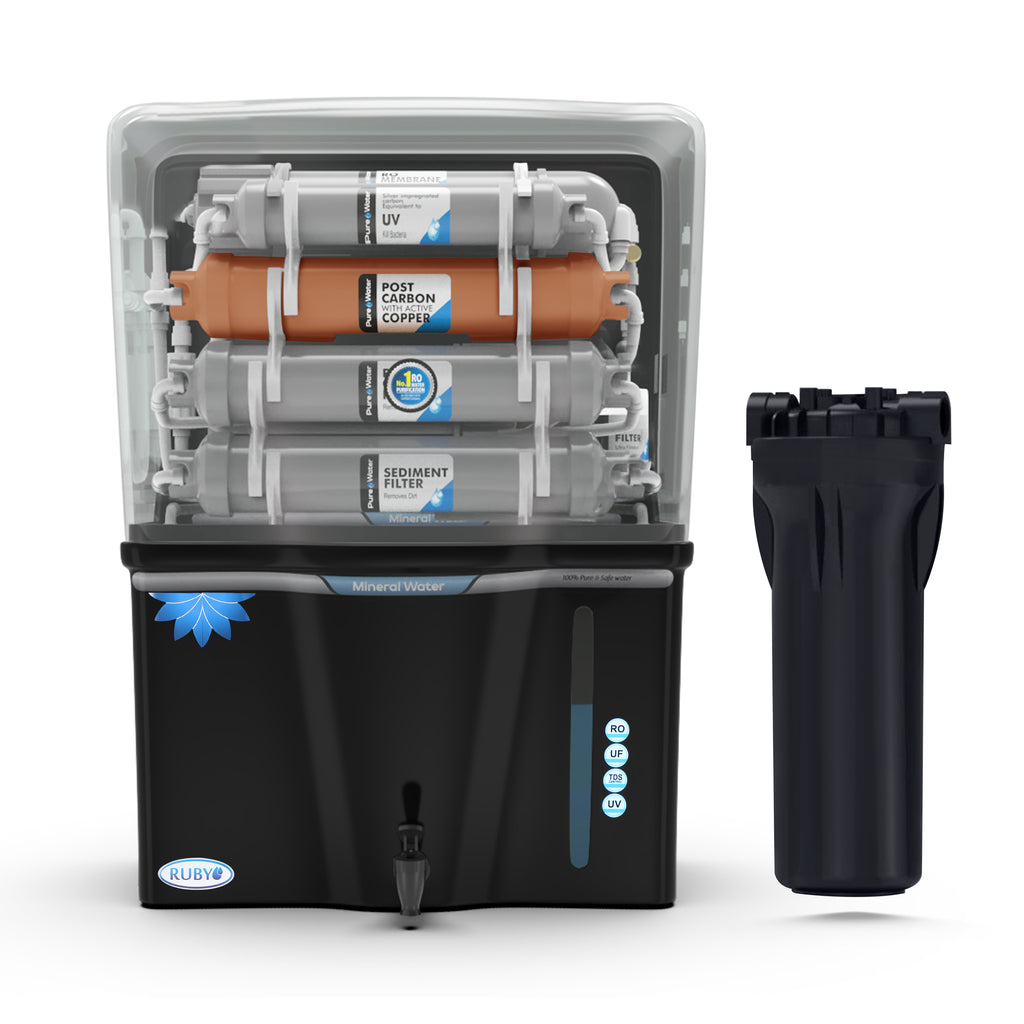

Ruby Fully Automatic Water Purifier with Silver impregnated Carbon Advanced Multi Stage RO+UV+UF 12 Litres Storage

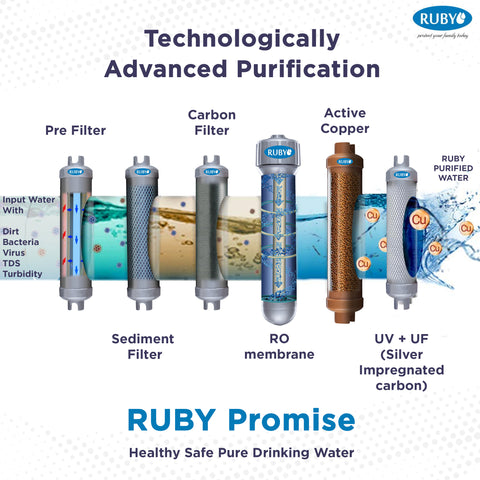

Filtration Stages

Sediment Pre-Filter

There are several different types of sediment cartridges. Melt Blown Polypropylene removes dirt, rust, and sediment particles down to 5 microns. These cartridges are washable and reusable for a particular period depending upon your water quality. 9″ inch spun / Pre-Filter candle is the most popular size for residential drinking water applications.

Inline Sediment Filter

Inline Sediment filters are designed to remove suspended solids, which are also known as sediment, turbidity, or particulate.  A sediment filter essentially functions like a net that catches unwanted dirt particles as your water flows through the system.

Activated Carbon Filter

Coconut Shell Carbon Block Cartridge(s), 10 Micron removes chlorine, taste, odor, and chemical contaminants. Activated carbon block filters typically have a 0.5 to 10-micron filtration capability, making them also helpful for particulate filtration, removing taste and odor from chlorine, and insoluble lead reduction.

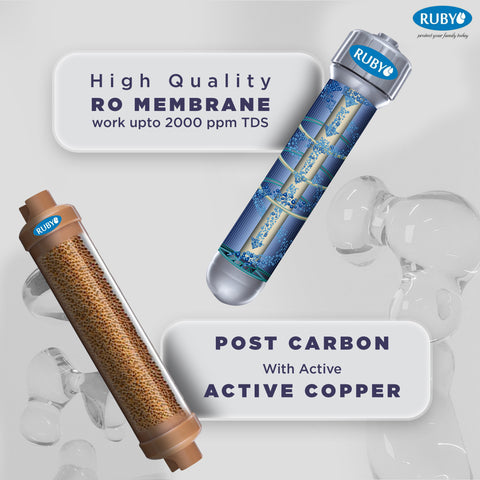

R O membrane

The reverse Osmosis membrane is the finest purification system. At the heart of the RO water purifier is a Reverse Osmosis (semi-permeable) membrane having capillaries as small as 0.0001 microns that remove dissolved impurities (salts and heavy metals) and convert hard water to sweet and purer drinking water.

TDS Adjuster

A TDS (Total dissolved solids) controller, as the name suggests it is a device that helps in increasing the TDS level of the water coming out of the RO. The RO process reduces the TDS of the input water by approximately 95%. If inlet TDS is 300ppm then RO makes it 15ppm, which is not enough so using the TDS adjuster we can increase TDS to 50 ppm.

UF Filter

Ultra Filtration membrane can remove 90 – 95% of undissolved impurities. The UF membrane has a filtration fineness of 0.01 microns, which allows water to pass through while blocking pathogens and contaminants. UF  filter is used in the path of the TDS adjuster.

Electronic Parts

SMPS Adaptor

Adaptor Output Power: 24VDC 2.5Amp/Max 3.0 Amp, Line Regulation (±): 0.5%, Load Regulation (±): 1%, Ripple & Noise (mV p-p): 250 Features: Overload Protection over Temperature Protection Short Circuit Protection Soft Start Longer service life Current Capacity: 2.5, ampere. SMPS Converts AC voltage to  DC 24V.

Low-Pressure Switch

If inlet water is not sufficient or at very low pressure then this switch stops the function of RO.
Once the inlet water supply starts properly LPS allows RO to function normally.
LPS avoids a dry run of the booster pump.

Solenoid Valve

A solenoid valve is an electromechanical actuated valve to control the flow of water. The solenoid valve works as an electronic tap, it allows water to go ahead when the purifier is on and it stops water when the purifier is off.

100 GPD Booster Pump

The purpose of the reverse osmosis booster pump is to increase water pressure going into the RO unit. We use a 100 GPD RO Booster Pump for providing reliable inlet pressure for efficient membrane utilization. The offered booster pump is manufactured under the direction of skilled professionals utilizing quality raw materials in accordance to the set industry norms.

UV Filtration

Ultra Violet Filtration contains a set of 3 different aspects i.e. UV Chamber, UV Choke, and UV Tube. Ultraviolet water purification is the most effective method for disinfecting bacteria from the water. Ultra Violet rays cause immediate death for organisms and wipe out their ability to survive and reproduce. UV causes all possible destruction of bacteria and viruses.

Float Valve & Switch

Micro Switch & Float Valve in RO system used to control auto ON / OFF the system. As the water storage tank fills up with pure water float valve turns OFF RO. When the tank is empty float valve turns the purifier ON

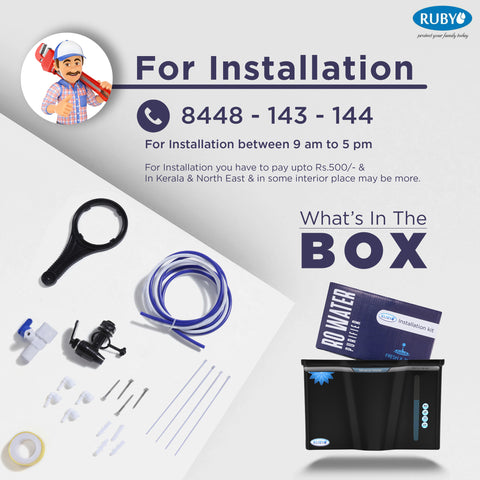

Fitting Material

Inlet Valve

Inlet Valve is used for connecting your RO/UV water purifiers with a water tap inlet connector. It is made up of standard quality material with the help of advanced technology. It helps to on/off the water supply manually.

Quick Fitting Pipe

Quick fitting pipes are mostly used in advance RO water purifiers to make fittings fast easy and leak proof

Spanner

In RO water purifiers the first stage of purification is the Pre-sediment filter which is recommended to clean once in fortnight/month. Spanner is used to open the Pre-Filter bowl easily.

Teflon

Teflon tape is used to make Inlet valve & tap fittings leakproof.

Purification Technology

RO + UV +Mineralizer with TDS Controller

Purification Capacity

Up to 12 Ltr per hour.

Maximum Duty cycle

Up to 75 Ltr. per day.

Storage Tank Capacity

12 Ltr.(approx.)

RO Membrane

75 GPD.

Purification Cartridges

Pre-Filter, Sediment Filter, Activated carbon filter, Reverse Osmosis Membrane, Mineral Cartridge, UV Disinfector.

Minimum inlet water pressure

0.3kg/cm sq.

Maximum inlet water pressure

3 kg/cm sq.

Input Voltage

180 to 280 AC.

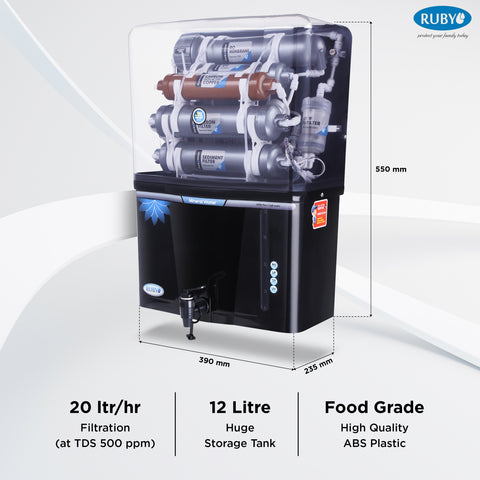

Dimensions (CM)

Height  55   X   Width  24   X   Length  39

Net Weight

9 KG.
